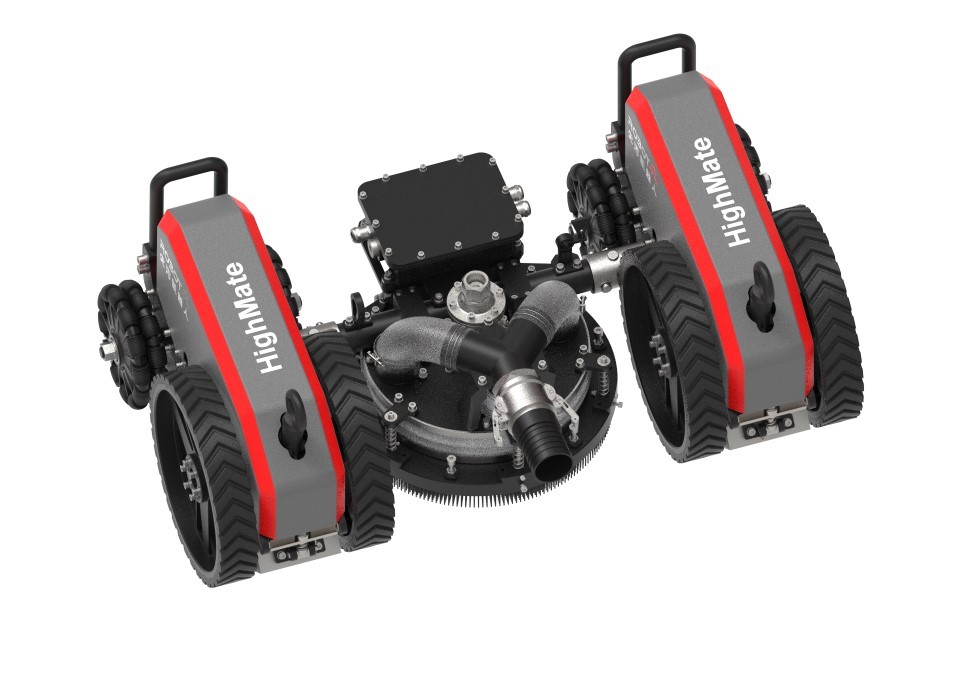

HighMate AP Series Multi-Functional Robot


HighMate AP Series, developed by RobotPlusPlus, is a multi-function robot designed for oil and gas industry. A set of AP robot consists robot chassis, control system, operation module and specific technique module. Three different operation modules include swing arm, horizontal module and hydroblasting dome, which can achieve open abrasive blasting (dry/wet), enclosed abrasive blasting and high pressure washing / enclosed hydroblasting.

Category:

Products

Keywords:

Multi-functional Anti-corrosion Robot

Sandblasting Robot

Painting Robot

Coating Robot

Water-jetting Robot,

Magnetic Anti-corrosion Robot

Hydroblasting Robot

Surface Preparation Robot

Oil Tank Spraying Robot

Multi-in-one Robot

Product Details

HighMate AP Series, developed by RobotPlusPlus, is a multi-function robot designed for oil and gas industry. A set of AP robot consists robot chassis, control system, operation module and specific technique module. Three different operation modules include swing arm, horizontal module and hydroblasting dome, which can achieve open abrasive blasting (dry/wet), enclosed abrasive blasting and high pressure washing / enclosed hydroblasting.



Product Features


Multi-Functional: Universal chassis which can conbine with different modules, including abrasive blasting (both dry and wet), spray painting, medium and high pressure washing, open hydroblasting, vacuum abrasive blasting, enclosed hydroblasting.

Wide Application: Minimum adaptable curvature 2.5 meters for both inner and outer surfaces. Robot is able to pass most spray lines and even wind girders with the help of auxiliary devices. Hydroblasting dome helps to clean the dead angles.

Safe and Reliable: 48V DC safe power system with high protection level. 130 kg excellent payload capacity.

High Operation Rate: Outperform manual labor by 2-4 times.

Easy-Operation: Intuitive display with simple operation procedures, master in 10 minutes.

Smart System: Optional automatic navigation function upgrade available.



Application Scenario


Capable of operating surface preparation (hydroblasting and abrasive blasting) and pressure washing on steel structure surfaces including storage tanks, vessels and bridges.



Major Technical Specifications


HighMateAP specifications
Dimensions 760×1000×350mm Power 1200w
Weight 66kg Speed 0-7.6m/min



Operation Performance


Open Abrasive Blasting: Maximum 35 m2/h with 2 nozzles
Enclosed Abrasive Blasting: Maximum 10 m2/h with 2 nozzles
Semi-open Spray Coating: Maximum 500 m2/h, with minimum thickness 60 μm
Enclosed Hydroblasting: Maximum 45 m2/h
