Polishing Robot

The tank polishing/grinding B50 is used for weld seam grinding and surface preparation

Category:

Products

Keywords:

Polishing Robot

RobotPlusPlus

HighMate

BeeBot

Sandblasting

Hydroblasting

Online Message

sales@robotplusplus.com

Product Details

The tank grinding robot (B50) is primarily used for weld seam grinding and surface preparation during the maintenance of oil or chemical tanks. The robot features a modular grinding unit that can perform grinding on weld seams and the surrounding areas. Compared to traditional manual grinding methods, it offers advantages such as lower costs, safety, and reliability.

Product Features

1.Strong Curved Surface Adaptability: The robot can safely adhere to and move freely on the surfaces of chemical storage tanks and spherical tanks, with flexible control.
2.Intelligent Grinding Operations: The platform has weld seam tracking capabilities, allowing the robot to autonomously follow and grind the weld seam, achieving automated operations.
3.Automatic Grinding Ability: The robot can autonomously adjust the grinding speed based on the weld seam condition, ensuring consistent grinding quality.
4.Modular Design: The robot supports quick replacement of the grinding unit and consumables such as grinding brushes, making maintenance easy.

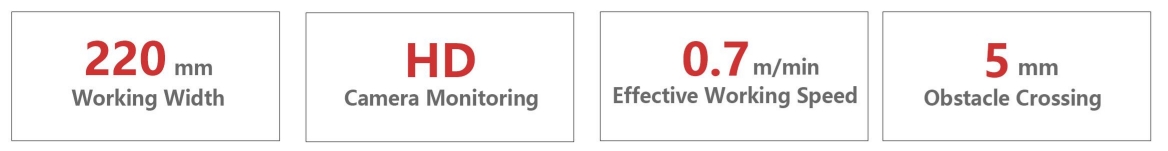

5.Excellent Grinding Result: The robot achieves St3 grade grinding quality, with a single-pass grinding width of up to 220 mm.

Technical Parameter

Specifications
Dimension	720370330 mm	Minimum Curvature	1.5 m
Weight	40 kg	Working Width	220 mm
Speed	3.7 m/min	Efficiency	0.3-0.7 m/min
Power supply	220V AC/50 Hz	Power	3500 W
